Overhead Line Fittings refer to the various hardware components used to support and connect the conductors (power lines) in an overhead electrical power transmission or distribution system.

Some common types of overhead line fittings include: Steel Parallel Groove Clamp, Alumium PG Clamp, Damper , Stay Rod, Strain Clamp, Spindle/Insulator Pin, Electrical Cross Arm, Socket Clevis , Insulated Wedge Clamp, D-Bracket , Eye Bolt , Hook , Shackle , Turnbuckle and other Overhead Line Fittings .

These fittings are designed to withstand the mechanical and environmental stresses associated with overhead power lines, such as wind, ice, and conductor tension. The selection and installation of these components are crucial for the reliability and safety of the power transmission and distribution system.

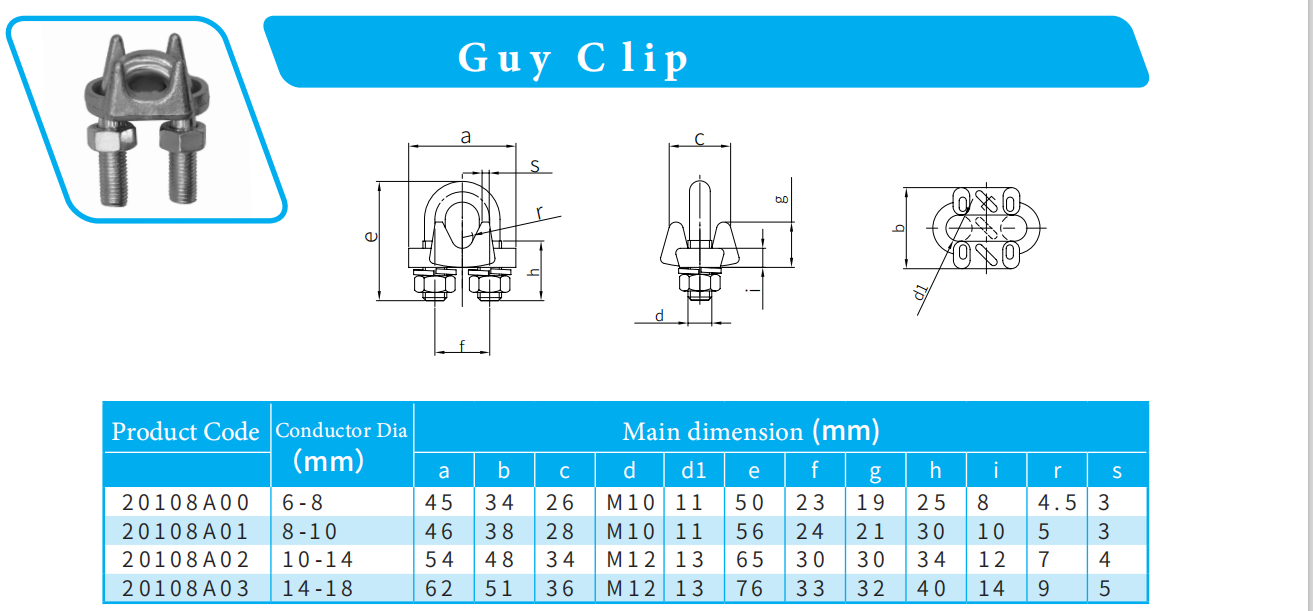

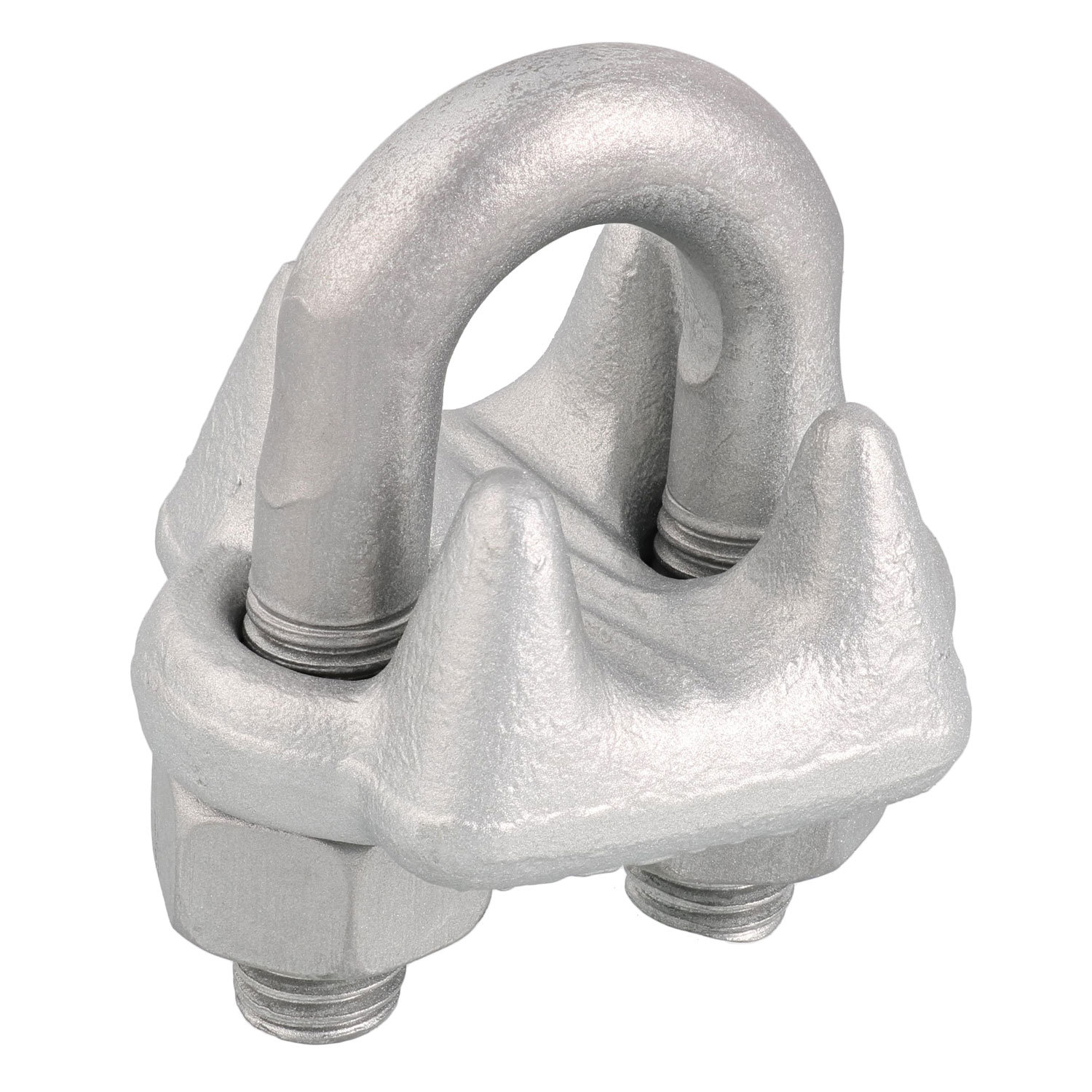

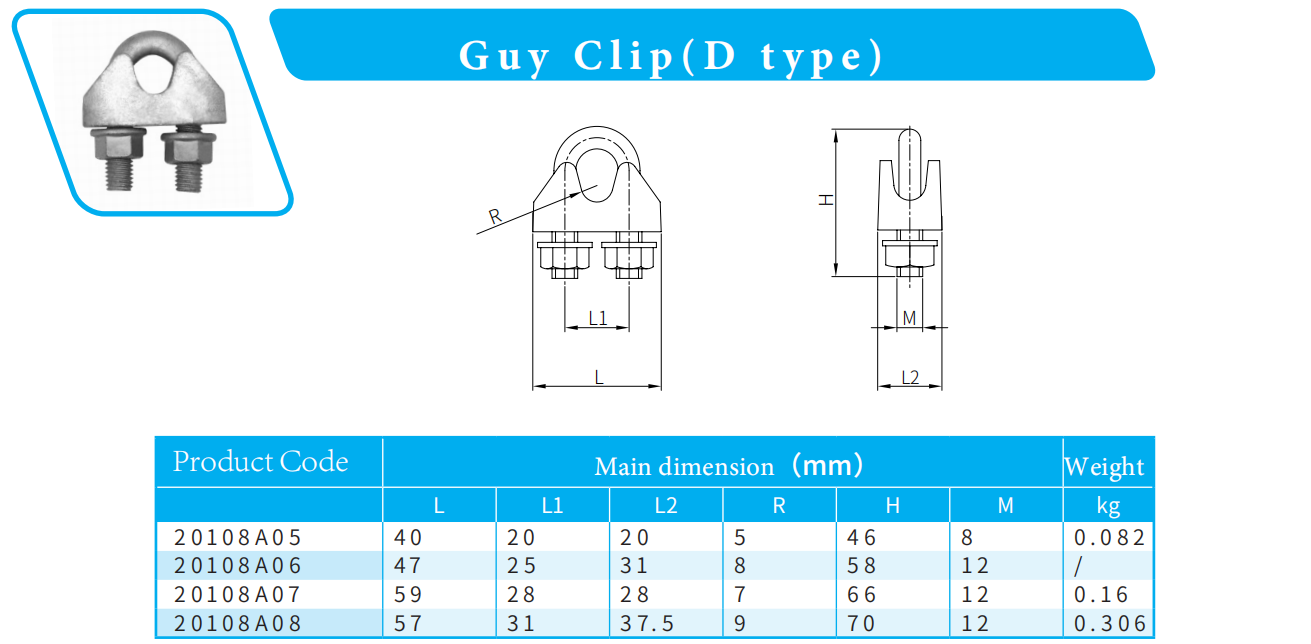

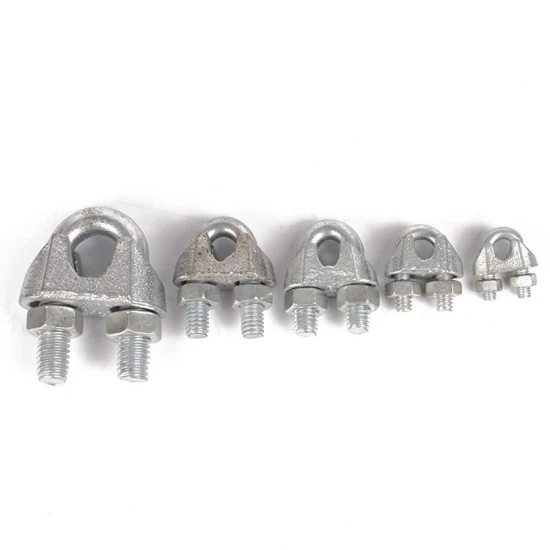

A "Guy Clip" refers to a type of hardware fitting used to secure and tension guy wires or guy rods. Guy wires or guy rods are tensioned cables or rods that are used to provide additional support and stability to vertical structures, such as utility poles, communication towers, or other tall, freestanding structures.

Data Needed for Quotation

1) Your own drawing

2) Your requirement on material and necessary dimensional data

3) Ask for recommend
